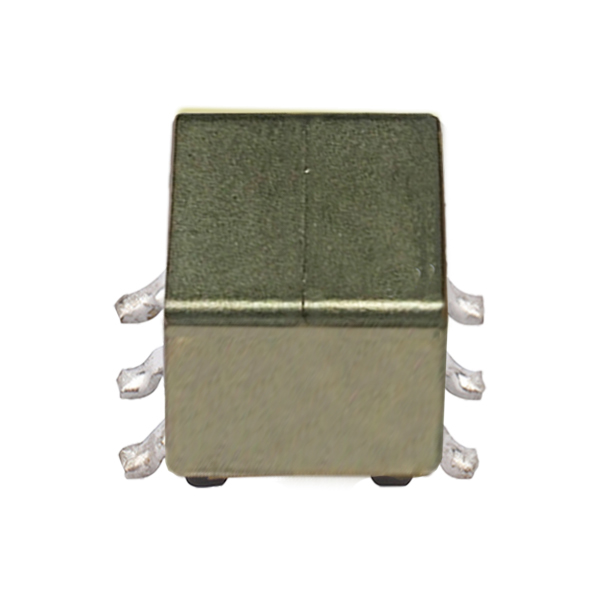

No-Opto Flyback Transformer YX902
No-Opto Flyback Transformer YX902
Features:
Input Voltage: 5V.
Output Voltage: 5V.
Output Current: 0.35A.
IC Vendor: Texas Instrument.
RoHS Compliant.
Operating Temperature -40°C to +125°C.
Rated AC current : 150mA.
Electrical Parameters:
| Turns Ratio: | PIN 4-6 : PIN 1-3 = 1.3 : 1 |
| DCR: | PIN1-3 = 0.31ohm Max. |
| PIN4-6 = 0.37ohm Max. | |
| Inductance: | PIN1-3 = 475uH Min. @10KHz/0.1V |
| Hi-Pot: | PRI. – SEC. = 3125VAC/60Hz/1Sec/1mA |
Dimension(Inches/mm)：
Electric Schmatic:
