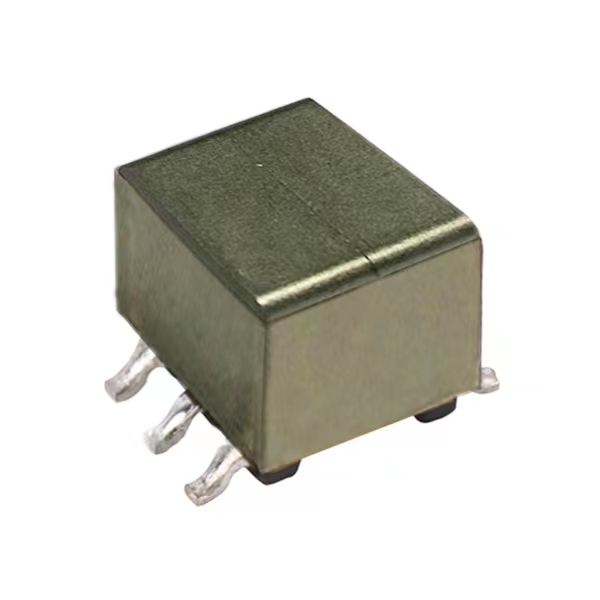

No-Opto Flyback Transformer YX903

No-Opto Flyback Transformer YX903

Features:

Input Voltage: 3.5V.

Output Voltage: 5V.

Output Current: 0.35A.

IC Vendor: Texas Instrument.

RoHS Compliant.

Operating Temperature -40°C to +125°C.

Rated AC current : 150mA.


Electrical Parameters:

Turns Ratio:PIN 4-6 : PIN 1-3 = 1.7 : 1
DCR:PIN1-3 = 0.31ohm Max.
PIN4-6 = 0.37ohm Max.
Inductance:PIN1-3 = 475uH Min. @10KHz/0.1V
Hi-Pot:PRI. – SEC. = 2500VAC/60Hz/1Sec/1mA



Dimension(Inches/mm)

1661668445305_副本              2b1918d19009f964c861c8059620f33


1661670937948        1661670962489


Electric Schmatic:


1661670999211
