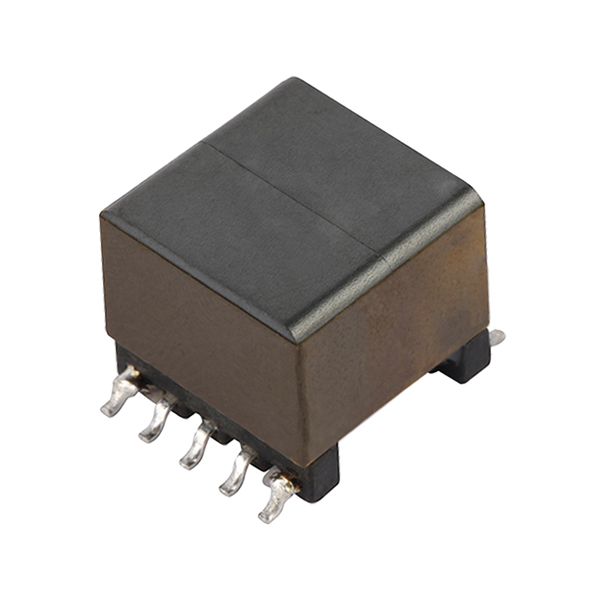

No-Opto Flyback Transformer YX906
No-Opto Flyback Transformer YX906
Features:
Input Voltage: 35V-60V.
Output Voltage: 12V.
Output Current: 2.1A.
IC Vendor: Silicon Labs.
Flyback transformer for PoE applications.
RoHS Compliant.
Operating Temperature -40°C to +85°C.
Storage Temperature -40°C to +85°C.
Electrical Parameters:
| Turns Ratio: | PIN 1-3 : PIN 1-2 = 1 : 1 |
| PIN 1-3 : PIN 4-5 = 1.43 : 1 | |
| PIN 1-3 : PIN 6-9 = 3.33 : 1 | |
| PIN 1-3 : PIN 7-10 = 3.33 : 1 | |
| Inductance: | PIN 1-3 = 100uH @ 100KHz/0.1V |
| Leakage Inductance: | PIN 1-3 = 0.22uH Max. @ 100KHz/0.1V (PIN 4,5,6,7,9,10 shorted) |
| DCR: | PIN 1-3 = 33 mohm Max. |
| PIN 1-2 = 221 mohm Max. | |
| PIN 4-5 = 69 mohm Max. | |
| PIN 6-9 = 6.6 mohm Max. | |
| PIN 7-10 = 6.6 mohm Max. | |
| Hi-POT: | PRI. – SEC. = 1500VAC/60Hz/2S/1mA |
Dimension(Inches/mm)：
Electric Schmatic:
