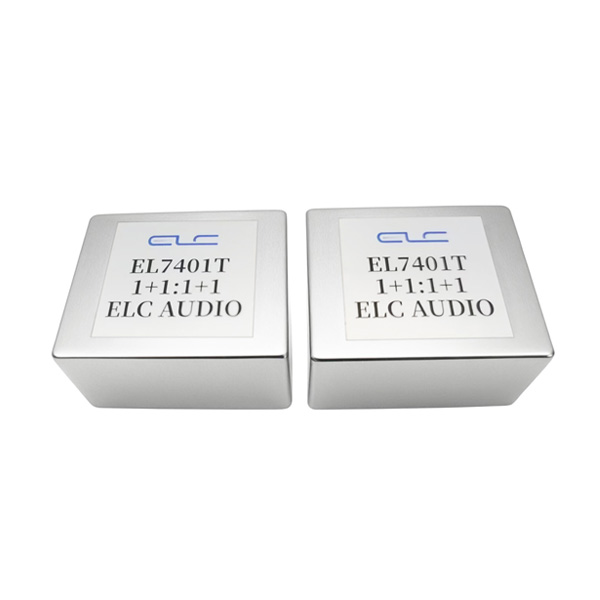

EL7401T

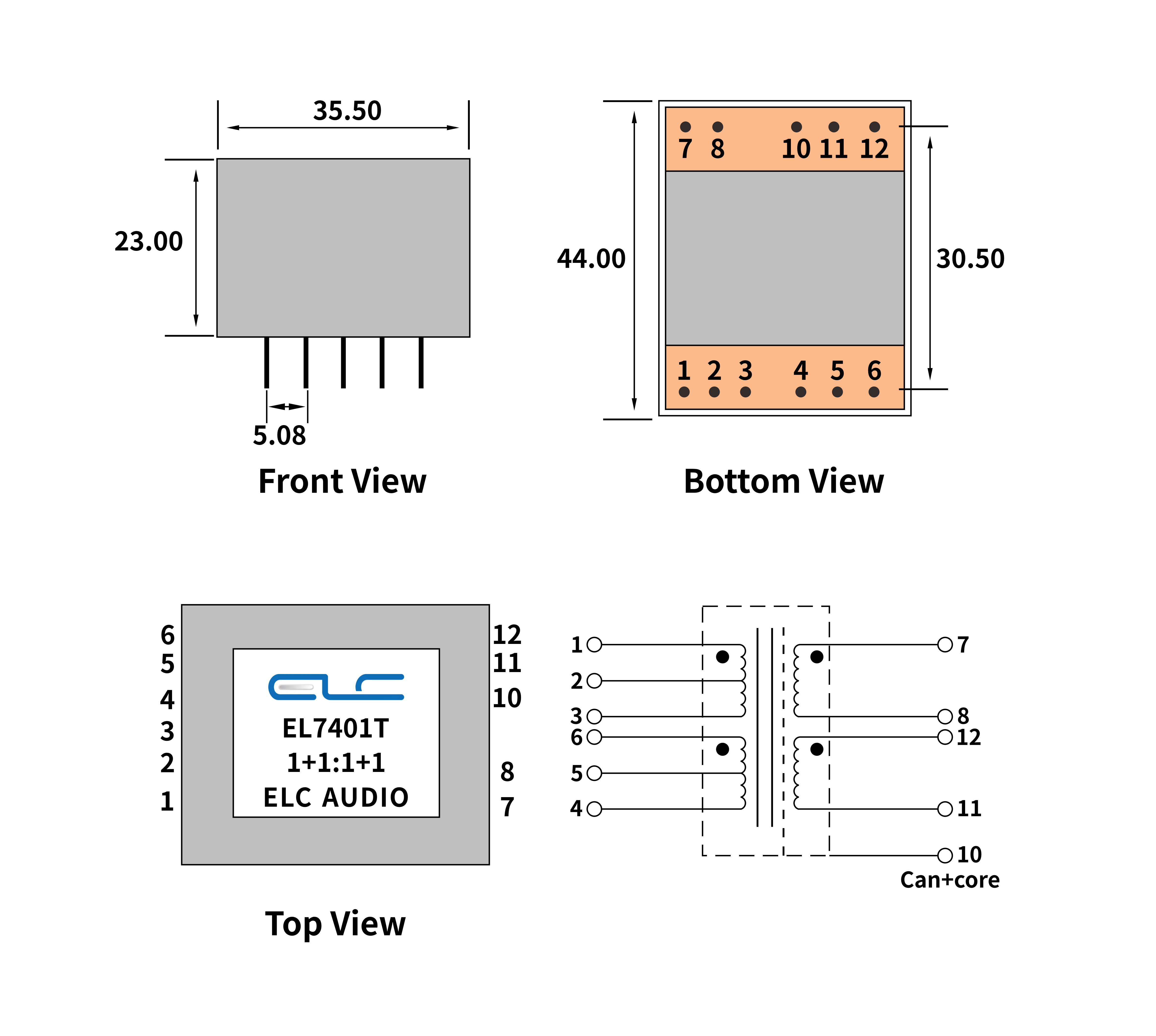

Dimension(mm) and Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 1+1 : 1+1 |
| DCR(Pin1 to Pin3): | 9 OHMS |
| DCR(Pin4 to Pin6): | 9 OHMS |
| DCR(Pin7 to Pin8): | 9 OHMS |
| DCR(Pin11 to Pin12): | 9 OHMS |
| Inductance(Pin1 to Pin3): | 1.35 H |
| Inductance(Pin4 to Pin6): | 1.35 H |
| Inductance(Pin7 to Pin8): | 1.35 H |
| Inductance(Pin11 to Pin12): | 1.35 H |
| Hi-Pot: | 500 VAC, 1mA 1Sec (P-S、P、S-C) |
