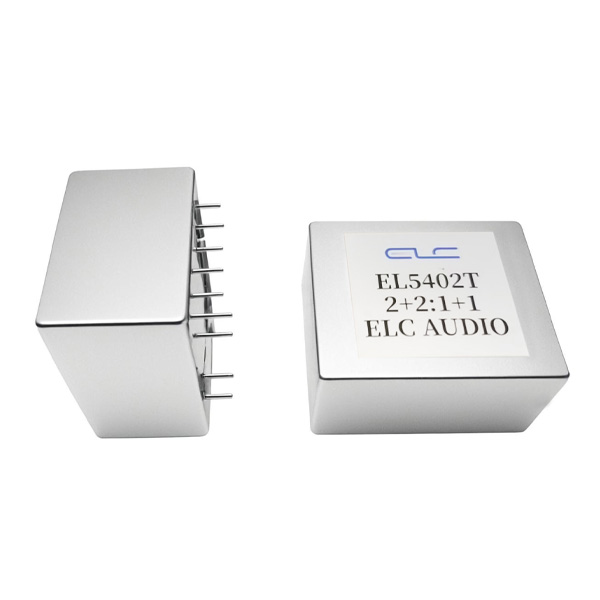

EL5402T

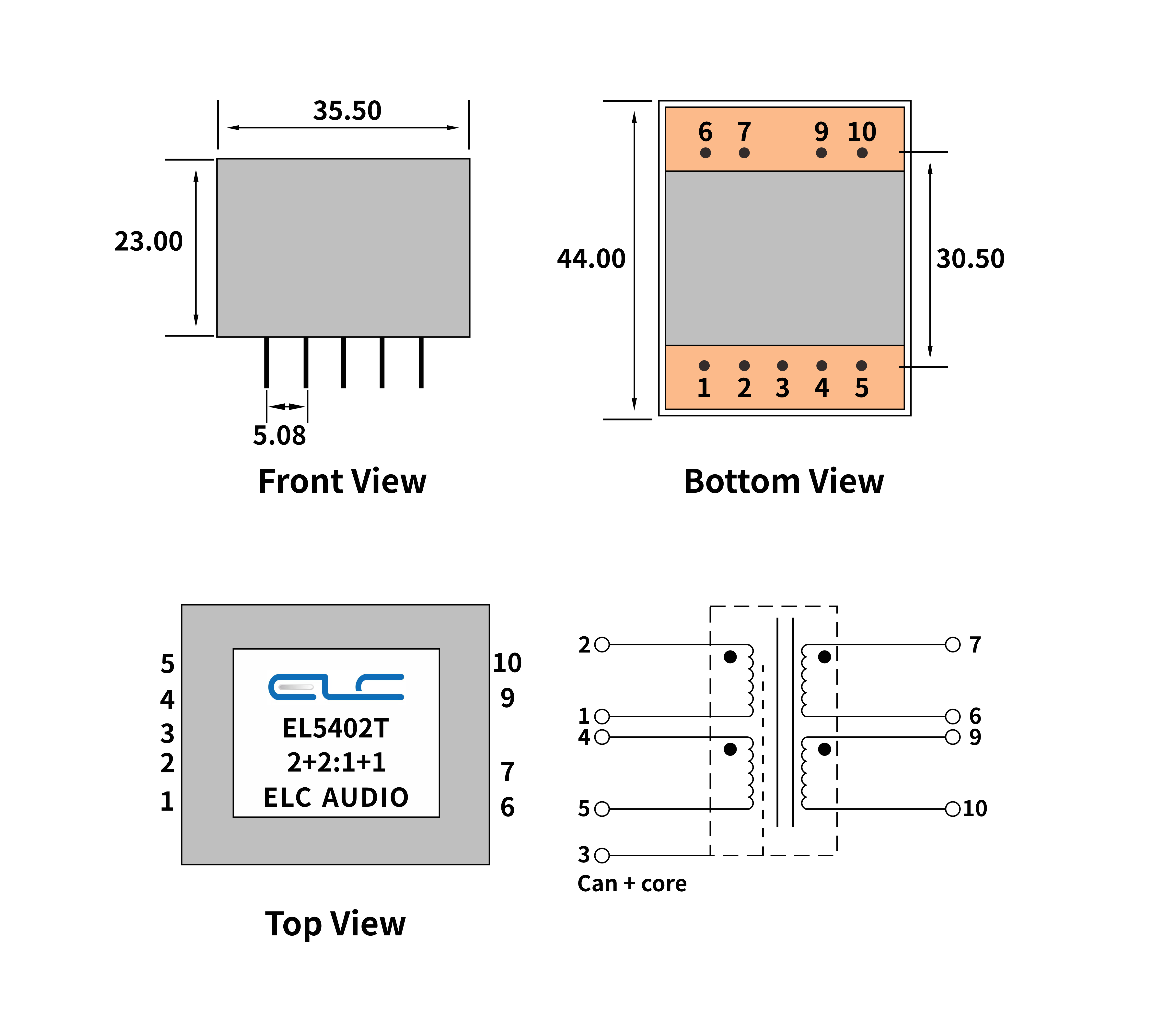

Dimension(mm) and Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 2+2 : 1+1 |
| DCR(Pin1 to Pin2): | 30 OHMS |
| DCR(Pin4 to Pin5): | 30 OHMS |
| DCR(Pin6 to Pin7): | 7 OHMS |
| DCR(Pin9 to Pin10): | 7 OHMS |
| Inductance(Pin1 to Pin2): | 4.8 H |
| Inductance(Pin4 to Pin5): | 4.8 H |
| Inductance(Pin6 to Pin7): | 1.3 H |
| Inductance(Pin9 to Pin10): | 1.3 H |
| Hi-Pot: | 1000 VAC, 1mA 1Sec (P-S、P、S-C) |
