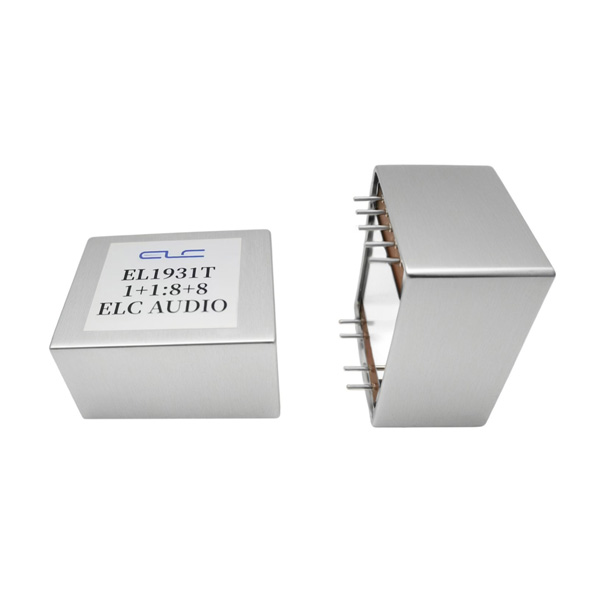

EL1931T

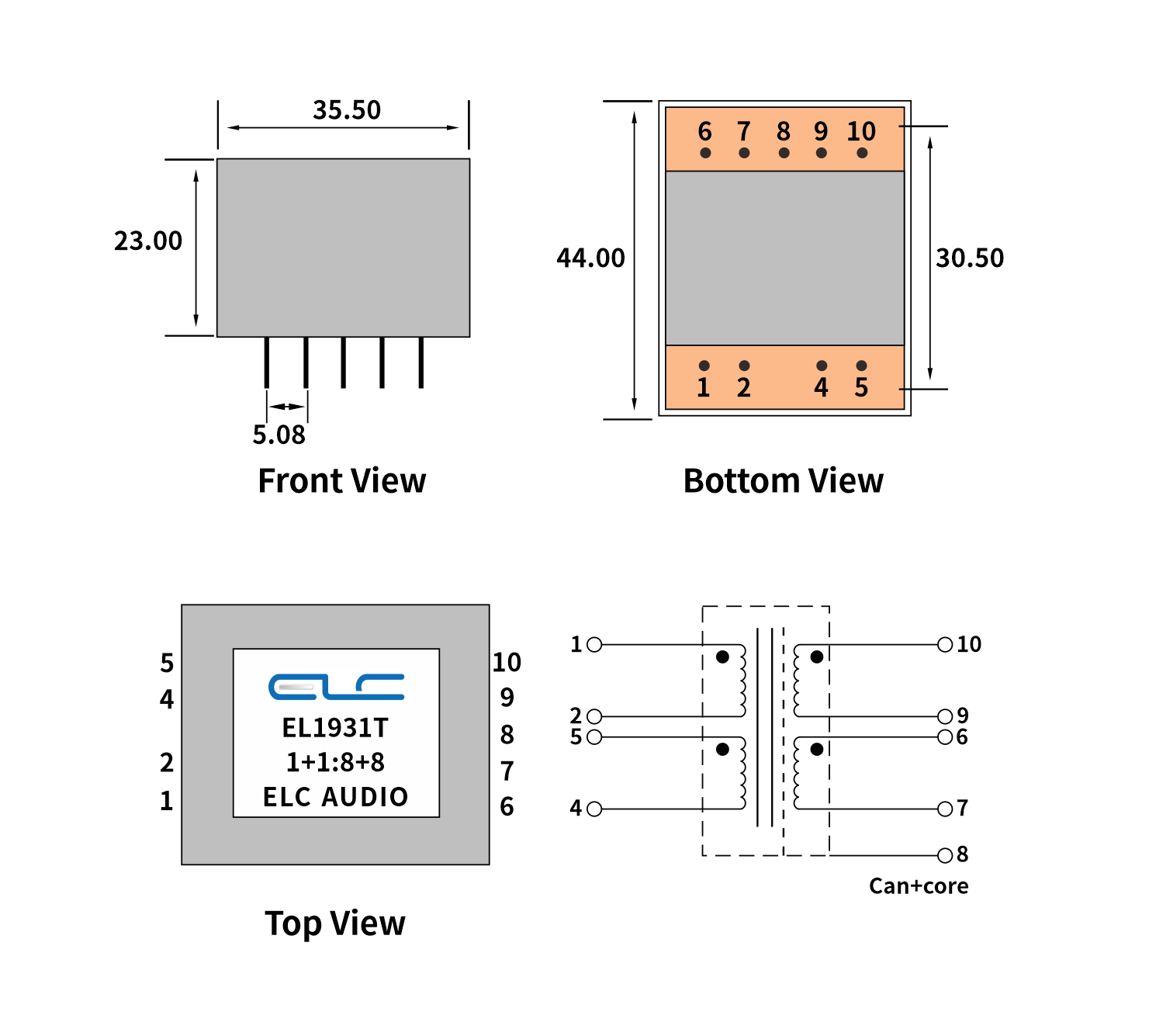

Dimension(mm) and Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 1+1 : 8+8 |
| DCR(Pin1 to Pin2): | 1.8 OHMS |
| DCR(Pin4 to Pin5): | 1.8 OHMS |
| DCR(Pin6 to Pin7): | 105 OHMS |
| DCR(Pin9 to Pin10): | 105 OHMS |
| Inductance(Pin1 to Pin2): | 254 mH |
| Inductance(Pin4 to Pin5): | 254 mH |
| Inductance(Pin6 to Pin7): | 13.2 H |
| Inductance(Pin9 to Pin10): | 13.2 H |
| Hi-Pot: | 1000 VAC, 1mA 1Sec (P-S、P、S-C) |
