EL1538

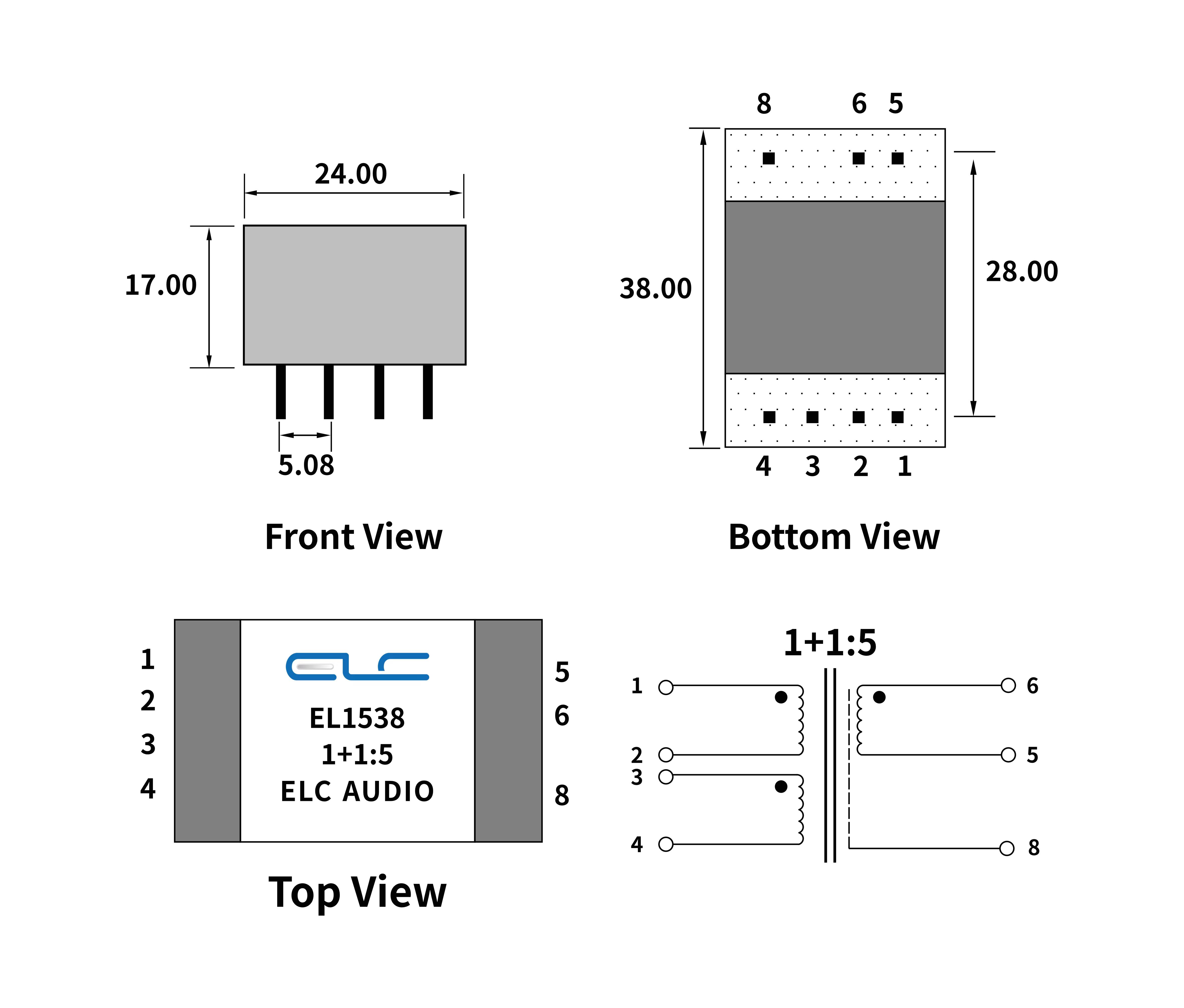

Dimension(mm) and Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 1+1 : 5 |
| DCR(Pin1 to Pin2): | 45.5 OHMS |
| DCR(Pin3 to Pin4): | 45.5 OHMS |
| DCR(Pin5 to Pin6): | 800 OHMS |
| Inductance(Pin1 to Pin2): | 11.5 H |
| Inductance(Pin3 to Pin4): | 11.5 H |
| Inductance(Pin5 to Pin6): | 295 H |
| Hi-Pot: | 1250 VAC, 1mA 1Sec (PRI-SEC) |
