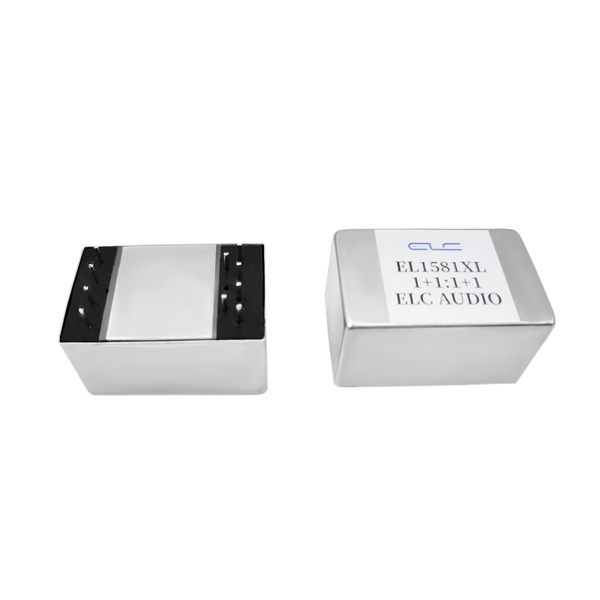

EL1581XL

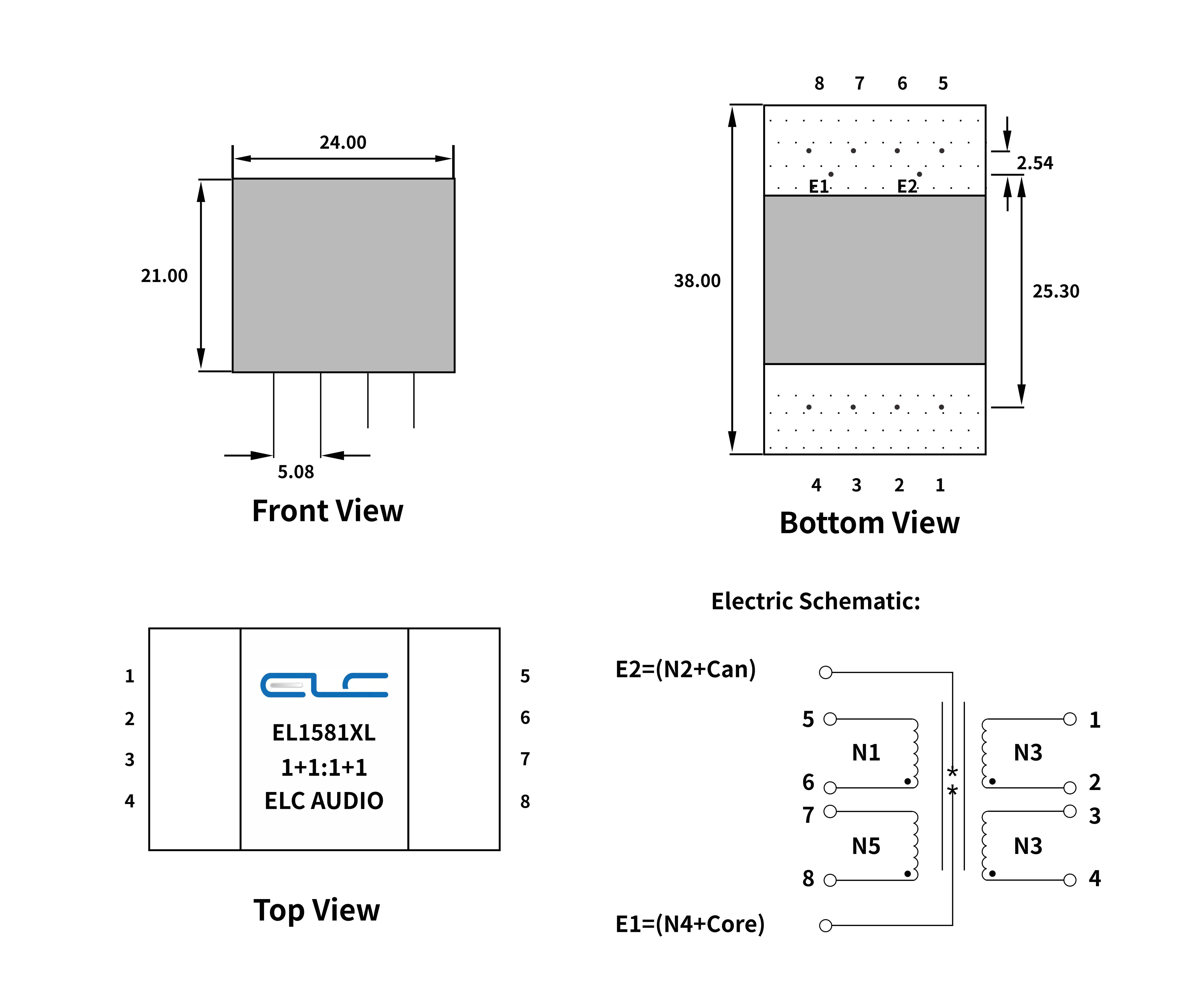

Dimension(mm) and Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 1+1 : 1+1 |
| DCR(Pin1 to Pin2): | 70 OHMS |
| DCR(Pin3 to Pin4): | 70 OHMS |
| DCR(Pin5 to Pin6): | 70 OHMS |
| DCR(Pin7 to Pin8): | 70 OHMS |
| Inductance(Pin1 to Pin2): | 26 H |
| Inductance(Pin3 to Pin4): | 26 H |
| Inductance(Pin5 to Pin6): | 26 H |
| Inductance(Pin7 to Pin8): | 26 H |
| Hi-Pot: | 1250 VAC, 1mA 1Sec (P-S、P、S-C) |
