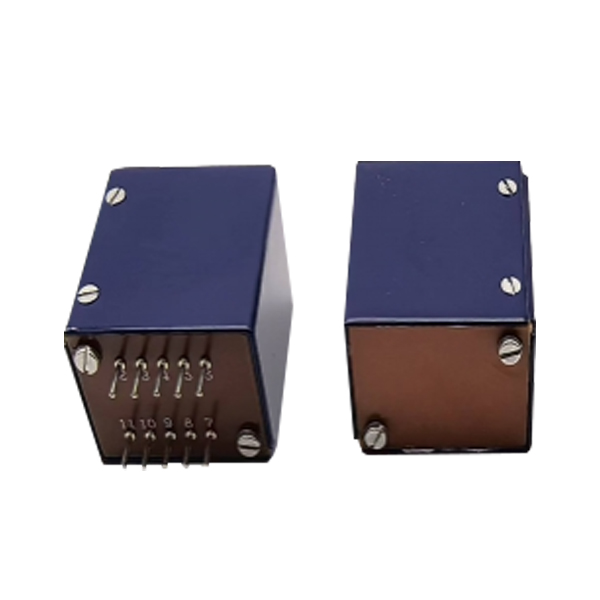

ELC VTB9045S
Dimension(mm):
Electrical Parameters:
| Turns Ratio: | 1+1 : 2+2 |
| DCR (Pin2 to Pin4 = Pin3 to Pin5): | 130 OHMS |
| DCR (Pin7 to Pin9 = Pin8 to Pin10): | 24 OHMS |
| Inductance(Pin2 to Pin4 = Pin3 to Pin5): | 3H Min |
| Inductance(Pin7 to Pin9 = Pin8 to Pin10): | 710mH Min |
| Hi-Pot: | 500VAC 5mA 1Sec. |
