ELC VTB9046

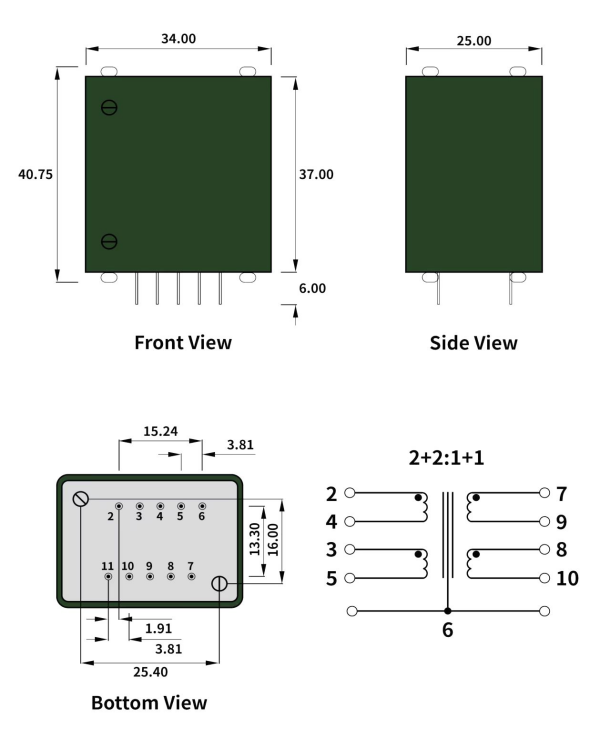

Dimension(mm):
Electrical Parameters:
| Turns Ratio: | 2+2 : 1+1 |
| DCR (Pin2 to Pin4 = Pin3 to Pin5): | 182 OHMS |
| DCR (Pin7 to Pin9 = Pin8 to Pin10): | 60 OHMS |
| Inductance(Pin2 to Pin4 = Pin3 to Pin5): | 5.5H Min |
| Inductance(Pin7 to Pin9 = Pin8 to Pin10): | 1.3H Min |
| Hi-Pot: | 500VAC 5mA 1Sec. |
