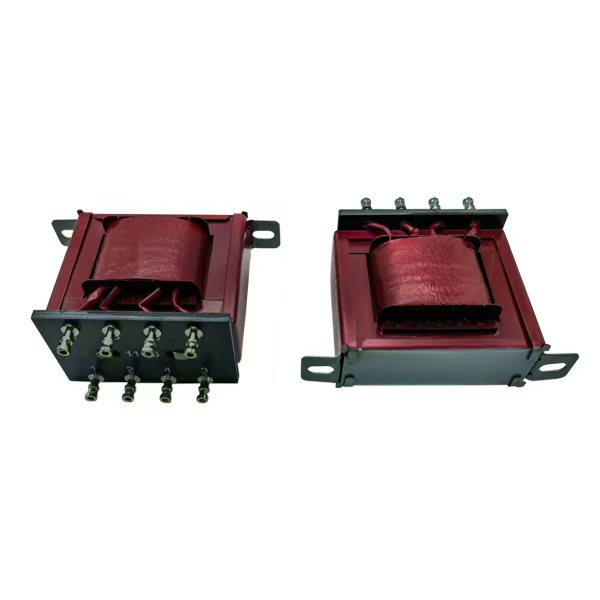

ELC LO1166

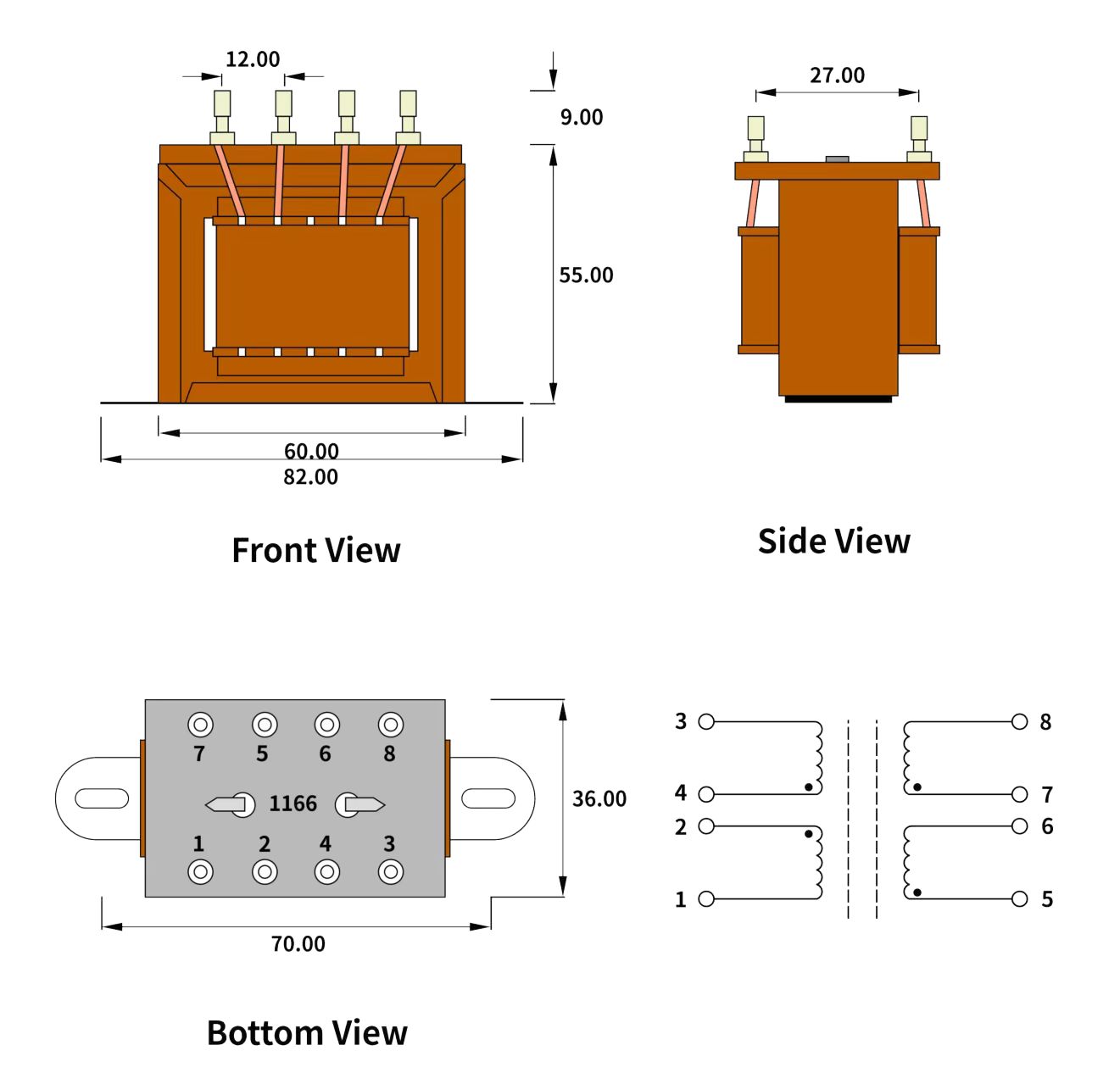

Dimension(mm):
Electrical Parameters:
| Turns Ratio: | 1+1 : 2+2 |
| DCR (Pin1 to Pin2): | 7.9 OHMS |
| DCR (Pin3 to Pin4): | 6.6 OHMS |
| DCR (Pin5 to Pin6): | 21.6 OHMS |
| DCR (Pin7 to Pin8): | 18.5 OHMS |
| Inductance(Pin1 to Pin2 = Pin3 to Pin4): | 300mH |
| Inductance(Pin5 to Pin6 = Pin7 to Pin8): | 820mH |
| Hi-Pot: | 500VAC 5mA 1Sec. |
