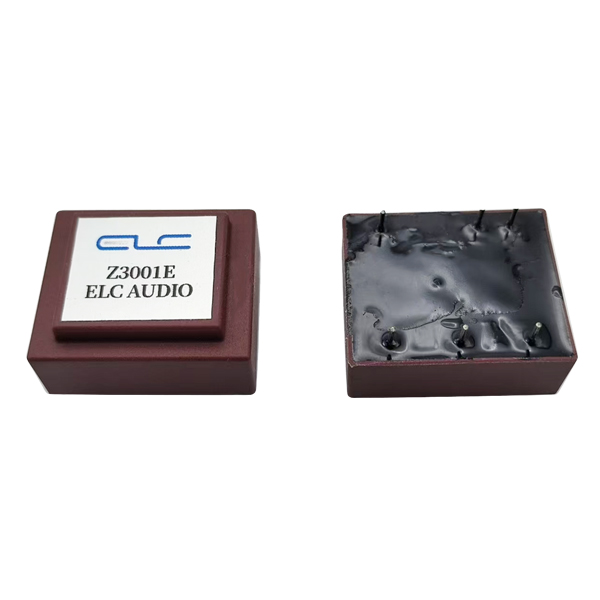

ELC Z3001E

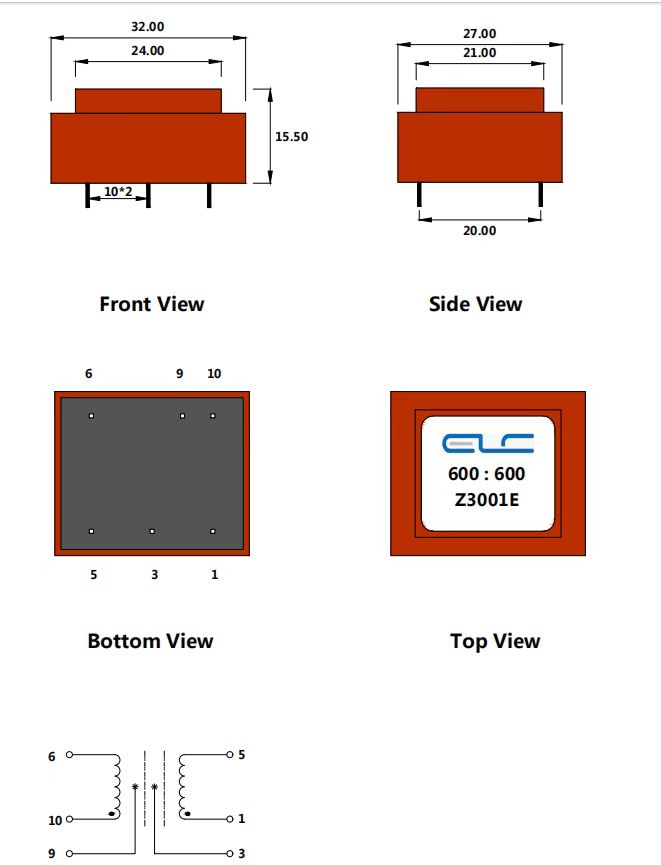

Dimension(mm) and Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 600 : 600 |
| DCR(Pin1 to Pin6): | 31 OHMS |
| DCR(Pin6 to Pin10): | 33.5 OHMS |
| Inductance(Pin1 to Pin5): | 10 H @100Hz 0.3V |
| Inductance(Pin6 to Pin10): | 10 H @100Hz 0.3V |
| Hi-Pot: | 500 VAC, 5mA 1Sec (PRI-SEC) |
