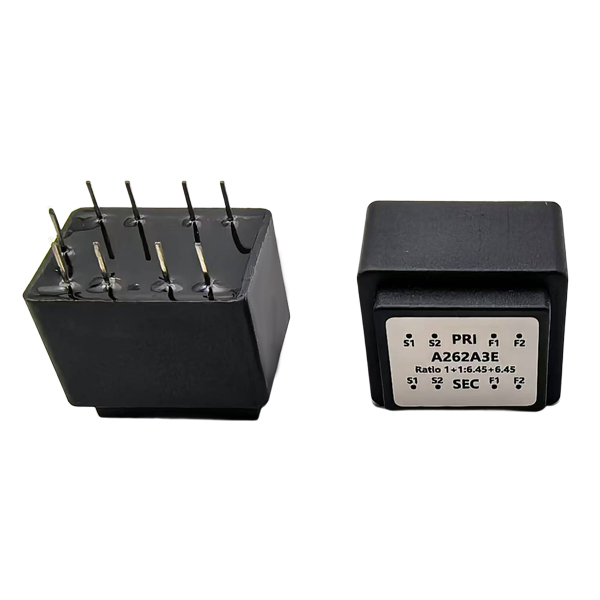

ELC A262A3E

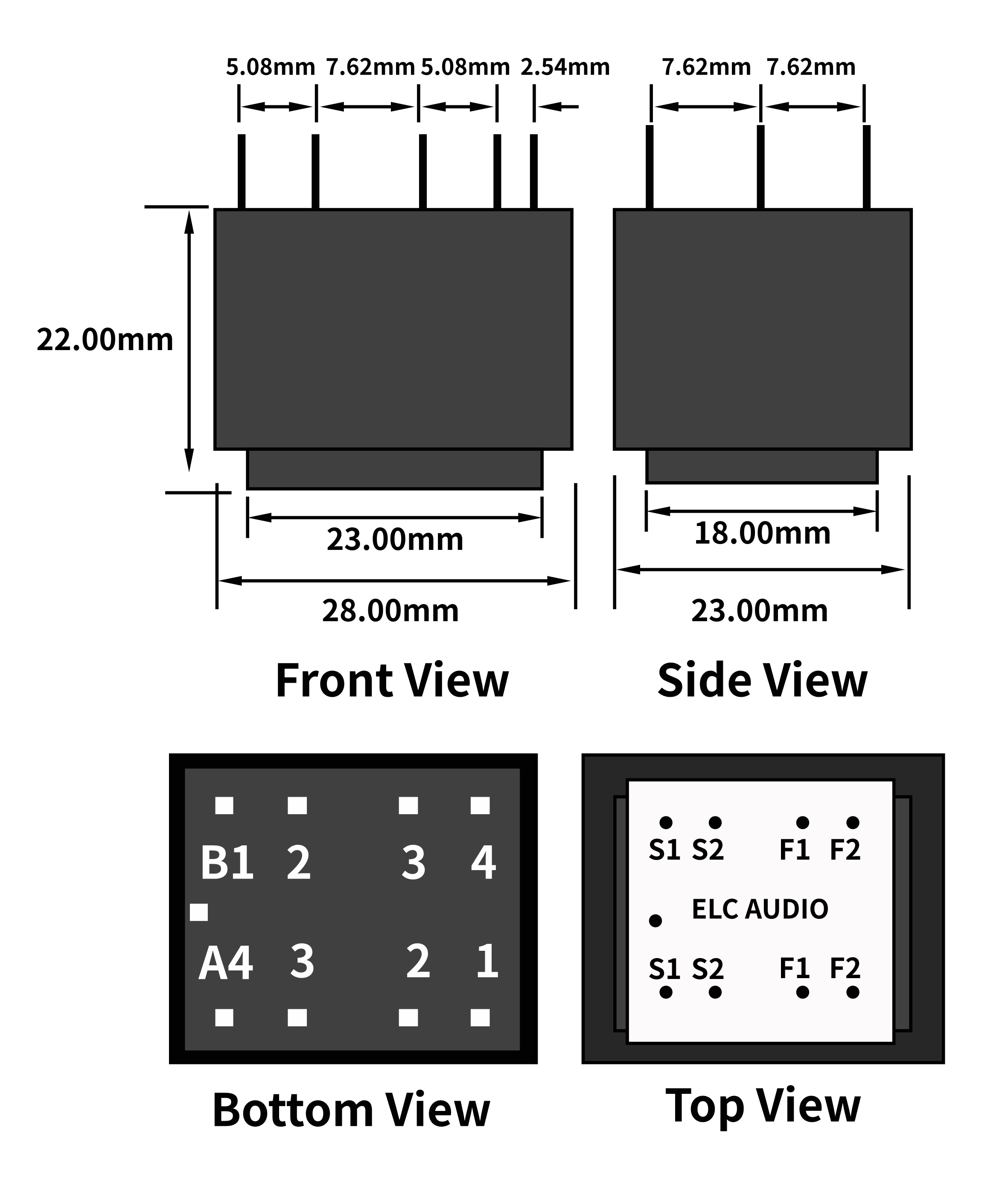

Dimension(mm) and Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 1+1 : 6.45+6.45 |
| DCR(A1 to A3 = A2 to A4): | 10 OHMS |
| DCR(B1 to B3): | 600 OHMS |
| DCR(B2 to B4): | 680 OHMS |
| Inductance(A1 to A3 = A2 to A4): | 220 mH |
| Inductance(B1 to B3 = B2 to B4): | 8.6 H |
| Hi-Pot: | 1000 VAC, 5mA 1Sec (PRI-SEC) |
