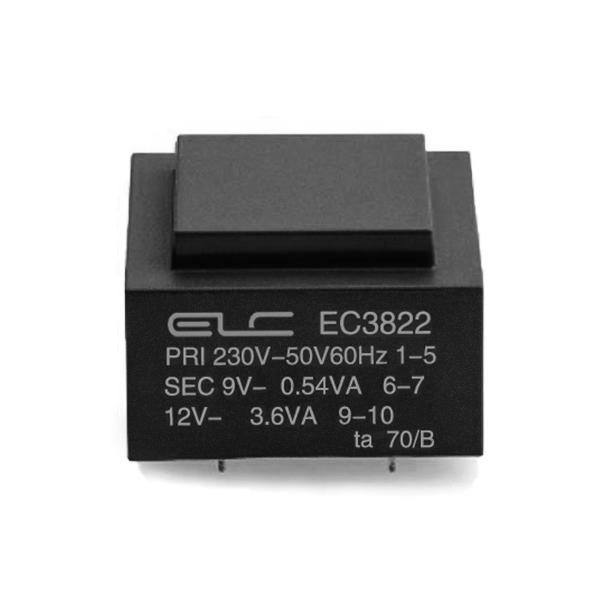

Encapsulated Transformer EC38
Features:
Conform to UL/CE Safety Standards.
Temperature Class: B(130℃), can be designed Class H(180℃).
Ambient Temperature: 40℃ or 70℃.
Vacuum Potting.
Material Flammability Classification UL94V-0.
Dielectric Strength 4200Vrms.
Operation Frequency: 50/60Hz.
Inherently Short-circuit Proof.
Resins Class B(20,000h Testing to IEC 216).
Conform to EN61558/EN60950/UL1585/UL506.
100% Tested Production.
Custom designs are available.
Electrical Parameters:
| Part No. | Pri. Voltage | Sec. Voltage | Sec. Current | No-load Voltage | Ambient Temp. | Rated Power | Weight Approx.(KG) |
| EC3801 | 230V | 6V | 534mA | 8.9V | T 70/B | 3.2VA | 0.153 |
| EC3802 | 230V | 9V | 356mA | 13V | T 70/B | 3.2VA | 0.153 |
| EC3803 | 230V | 12V | 267mA | 17V | T 70/B | 3.2VA | 0.153 |
| EC3804 | 230V | 15V | 214mA | 21V | T 70/B | 3.2VA | 0.153 |
| EC3805 | 230V | 18V | 178mA | 25.1V | T 70/B | 3.2VA | 0.153 |
| EC3806 | 230V | 24V | 133mA | 33.5V | T 70/B | 3.2VA | 0.153 |
| EC3807 | 115V | 6V | 534mA | 8.9V | T 70/B | 3.2VA | 0.153 |
| EC3808 | 115V | 9V | 356mA | 13V | T 70/B | 3.2VA | 0.153 |
| EC3809 | 115V | 12V | 267mA | 17V | T 70/B | 3.2VA | 0.153 |
| EC3810 | 115V | 15V | 214mA | 21V | T 70/B | 3.2VA | 0.153 |
| EC3811 | 115V | 18V | 178mA | 25.1V | T 70/B | 3.2VA | 0.153 |
| EC3812 | 115V | 24V | 133mA | 33.5V | T 70/B | 3.2VA | 0.153 |

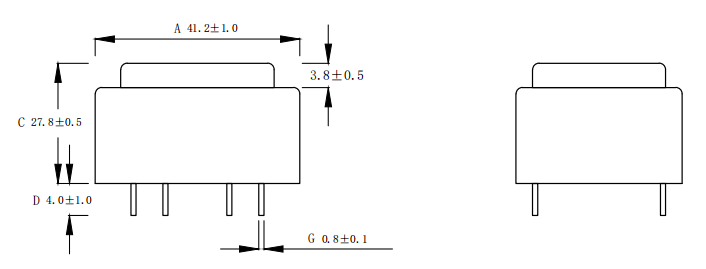

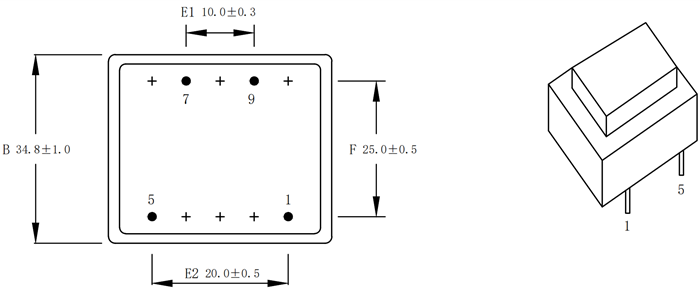

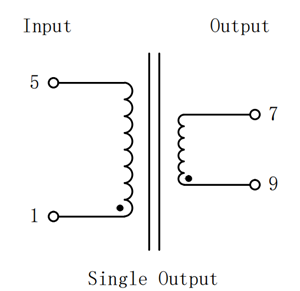

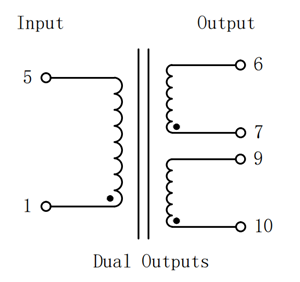

Electrical Schematic:
