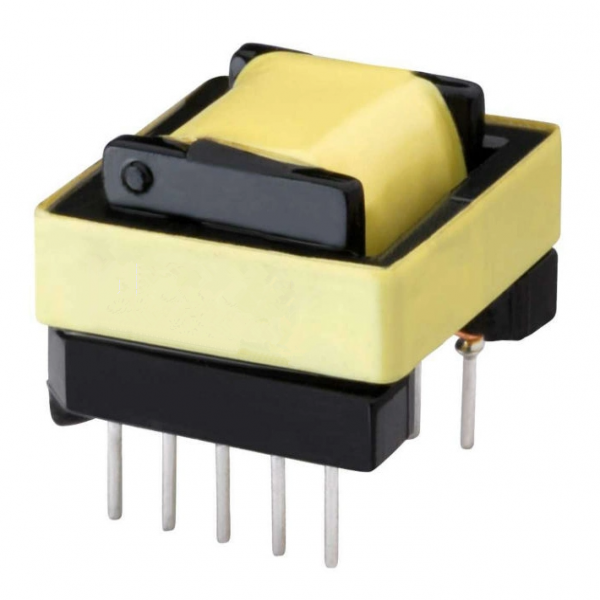

High Frequency Transformers EE Series
Features:
Conform to UL/CE Safety Standards.
With low leakage inductance, high efficiency, high frequency, high magnetic flux.
UL insulation system for Class B(130), F(155), H(180).
Suitable for EL/CCFL inverter or DC/DC converter.
Applicable frequency range: 20Hz to 100KHz.
Operating frequency: higher than 200KHz.
Electrical Parameters:
| Part No. | Terminal Pins | Length | Width | Height | Installation | Inductance | Power(W) | Working Frequency |
| EE-8.3 | 6 | 8.3mm | 8.0mm | 8.0mm | Vertical | 100.0uH | 0.2-3.0 | 20-100KHz |
| EE-10 | 8 | 10.2mm | 10.2mm | 11.5mm | Vertical | 80.0uH | 0.5-5.0 | 20-100KHz |
| EE-13 | 10 | 13.0mm | 12.5mm | 12.0mm | Vertical | 120.0uH | 0.5-8.0 | 20-100KHz |
| EE-1601 | 6 | 16.0mm | 13.3mm | 14.8mm | Vertical | 90.0uH | 1.0-10.0 | 20-100KHz |
| EE-1602 | 10 | 21.9mm | 16.0mm | 21.9mm | Vertical | 600.0uH | 2.0-15.0 | 20-100KHz |
| EE-1901 | 8 | 19.0mm | 16.0mm | 17.6mm | Vertical | 800.0uH | 3.0-30.0 | 20-100KHz |
| EE-1902 | 10 | 21.1mm | 16.0mm | 31.5mm | Vertical | 1200.0uH | 3.0-30.0 | 20-100KHz |
| EE-2501 | 6 | 25.2mm | 18.2mm | 20.0mm | Vertical | 2800.0uH | 3.0-45.0 | 20-100KHz |
| EE-2502 | 8 | 25.2mm | 17.5mm | 35.3mm | Vertical | 2800.0uH | 3.0-45.0 | 20-100KHz |
| EE-30 | 10 | 30.0mm | 29.2mm | 21.0mm | Horizontal | 900.0uH | 3.0-50.0 | 20-100KHz |
| EE-40 | 14 | 40.0mm | 30.5mm | 27.6mm | Horizontal | 1500.0uH | 3.0-55.0 | 20-100KHz |
| EE-4201 | 12 | 44.0mm | 42.0mm | 33.8mm | Horizontal | 2000.0uH | 3.0-80.0 | 20-100KHz |
| EE-4202 | 12 | 42.0mm | 39.8mm | 45.0mm | Vertical | 1900.0uH | 3.0-90.0 | 20-100KHz |
| EE-55 | 20 | 55.0mm | 50.0mm | 50.0mm | Horizontal | 3000.0uH | 3.0-150.0 | 20-100KHz |
| EE-65 | 16 | 65.0mm | 51.8mm | 55.2mm | Horizontal | 4500.0uH | 3.0-300.0 | 20-100KHz |

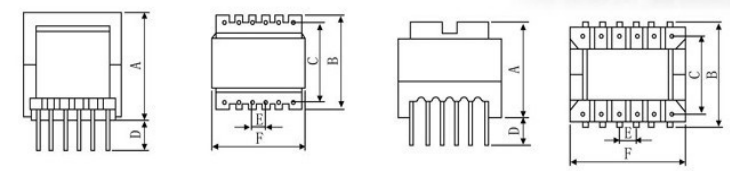

Outline Dimensions:
