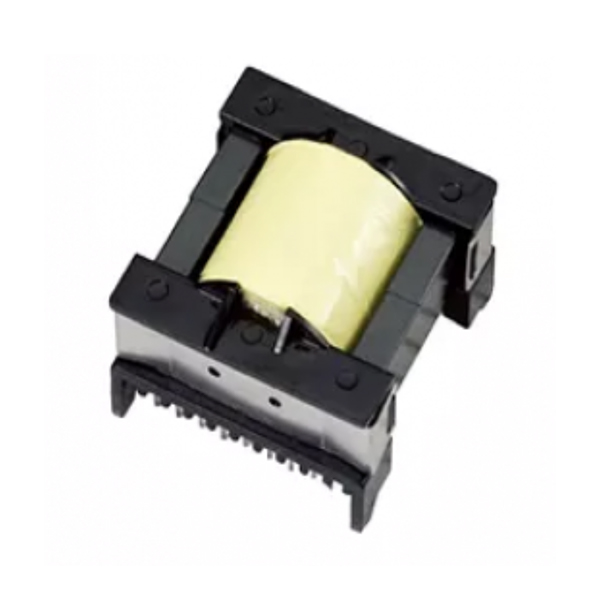

High Frequency Transformers ETD Series
Features:
Conform to UL/CE Safety Standards.
With low leakage inductance and high efficiency,High magnetic flux and low loss magnetic materials.
UL Insulation System for Class B (130), F (155), H(180).
Applicable frequency range: 20Hz to100kHz.
Working Frequency:40Hz-500KHz.
Working Temperature: -40℃-125℃.
Operating frequency: higher than 200kHz.
Electrical Parameters:
| Part No. | A | B | C | D | E | F | Output Power(W) |
| ETD-29 | 16.0mm | 10.7mm | 9.8mm | 9.8mm | 22mm | 30.6mm | 30-90 |
| ETD-34 | 17.5mm | 11.8mm | 11.1mm | 11.1mm | 25.6mm | 34.0mm | 30-90 |
| ETD-39 | 20.0mm | 14.2mm | 12.8mm | 12.8mm | 29.3mm | 38.9mm | 20-500 |
| ETD-44 | 22.5mm | 16.1mm | 15.2mm | 15.2mm | 32.5mm | 43.8mm | 20-800 |
| ETD-49 | 24.5mm | 17.7mm | 16.7mm | 16.7mm | 36.1mm | 48.5mm | 20-800 |
| ETD-54 | 27.8mm | 19.8mm | 19.3mm | 19.3mm | 40.1mm | 54.5mm | 20-1200 |
| ETD-59 | 31.2mm | 22.0mm | 22.1mm | 22.1mm | 43.6mm | 59.8mm | 400-2000 |

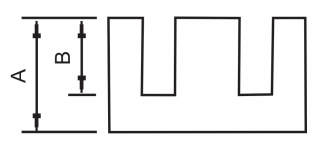

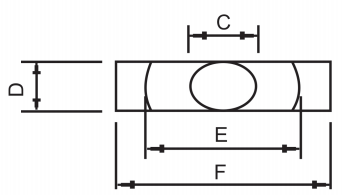

Core Dimensions:
