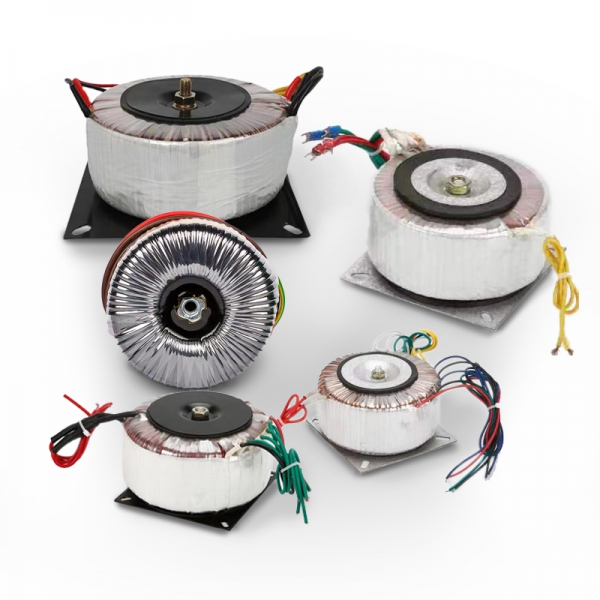

Toroidal transformer Series

Features:

100V / 110V / 117V / 120V / 220V / 230V / 240V, 50Hz / 60Hz.

Power range 20VA to 6000VA Available according to customer's requirement.

Input/Output voltage: customized. Insulation: Class B, can be designed Class H. Inductance Value: Customized.

optional single or Dual Primary.

High efficiency.

Low magnetic flux leakage.

Low noise, Low no-load loss.

Electrical Parameters:

Part Number	AC Output		Dimension
Part Number	Voltage Range	Current Range	OD	H	Weight(KG)
T-20	20VA	12V-24V	63mm	33mm	0.33
T-25	25VA	12V-24V	65mm	35mm	0.38
T-30	30VA	12V-24V	70mm	40mm	0.45
T-35	35VA	12V-24V	72mm	40mm	0.49
T-40	40VA	12V-24V	75mm	40mm	0.53
T-45	45VA	12V-24V	75mm	40mm	0.57
T-50	50VA	12V-36V	80mm	40mm	0.68
T-60	60VA	12V-36V	83mm	43mm	0.73
T-70	70VA	12V-36V	85mm	43mm	0.83
T-80	80VA	12V-36V	90mm	43mm	0.98
T-90	90VA	12V-36V	95mm	43mm	1.05
T-100	100VA	12V-36V	100mm	48mm	1.20
T-150	150VA	12V-24V*2	105mm	50mm	1.50
T-200	200VA	12V-24V*2	110mm	53mm	1.80
T-250	250VA	12V-24V*2	120mm	55mm	2.20
T-300	300VA	12V-24V*2	120mm	58mm	2.40
T-350	350VA	12V-24V*2	123mm	60mm	2.65
T-400	400VA	12V-24V*2	120mm	63mm	2.90
T-450	450VA	24V-48V*2	123mm	65mm	3.00
T-500	500VA	12V-24V*2	125mm	65mm	3.20
T-600	600VA	12V-24V*2	128mm	65mm	3.82
T-700	700VA	12V-24V*2	130mm	70mm	4.30
T-800	800VA	12V-24V*2	132mm	73mm	4.56
T-900	900VA	12V-24V*2	145mm	75mm	4.93
T-1000	1000VA	18V-36V2 30V-60V2	145mm	75mm	5.50
T-1500	1500VA	18V-36V2 30V-60V2	150mm	80mm	7.05
T-2000	2000VA	18V-36V2 30V-60V2	160mm	85mm	8.70
T-3000	3000VA	12V-24V2 24V-48V2 40V-48V*2	170mm	90mm	11.60
T-4000	4000VA	12V-24V2 24V-48V2 40V-48V*2	180mm	95mm	14.30
T-5000	5000VA	12V-24V2 24V-48V2 40V-48V*2	195mm	100mm	16.80
T-6000	6000VA	12V-24V2 24V-48V2 40V-48V*2	205mm	105mm	19.70

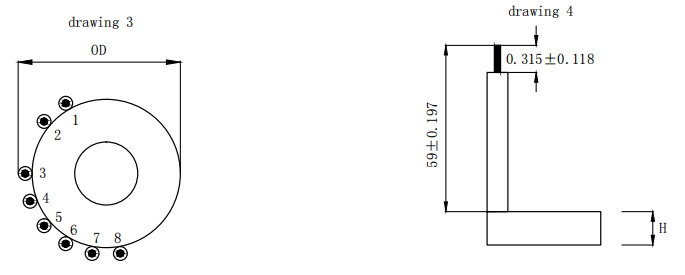

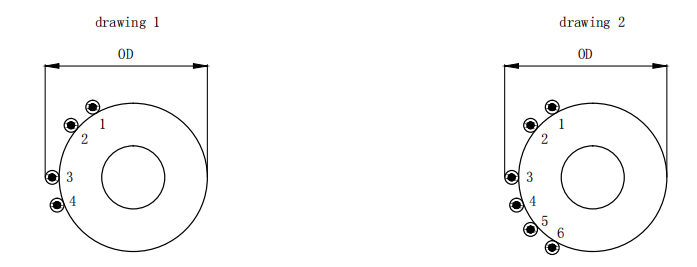

Outline Dimensions:

1662521387175

1662521408059

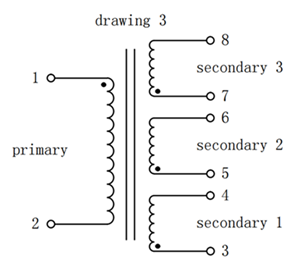

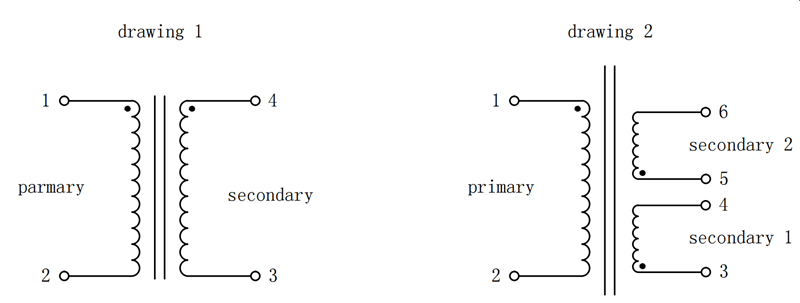

Electrical Schematic:

1662521597032_副本_副本

1662521665307_副本
