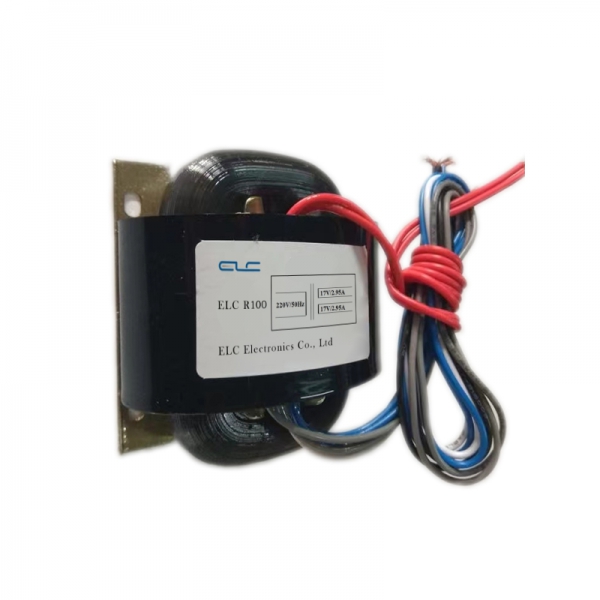

R Type Transformers R100

1Features:

Conform to UL Safety Standards and ROHS Standards.

Small and light, beautiful process, low magnetic flux leakage, small excitation current.

High efficiency, low temperature rise, low loss, high balance, no noise.

Rated Power: 5VA to 3000VA.

Rated Frequency: 50/60Hz.

Insulation Class: Class B , can be designed Class H.

Custom designs available.


Electrical Parameters:



Part Number Power
DimensionWeight(KG)Pitch(mm)
A(mm)
X(mm)
R100
100VA122501.594*73
Primary Input Voltage220V
Primary Direct Current Resistance
25Ω
Primary No-load Current(Max)20mA
Secondary Output No-load Voltage

  S1: 3~4     0~17V

                  S2: 5~6     0~17V

Secondary Output Load Voltage

      S1: 3~4     0~15.6V

                         S2: 5~6     0~15.6V

Secondary Output Load Current

     S1: 3~4        2.95A

                           S2: 5~6        2.95A

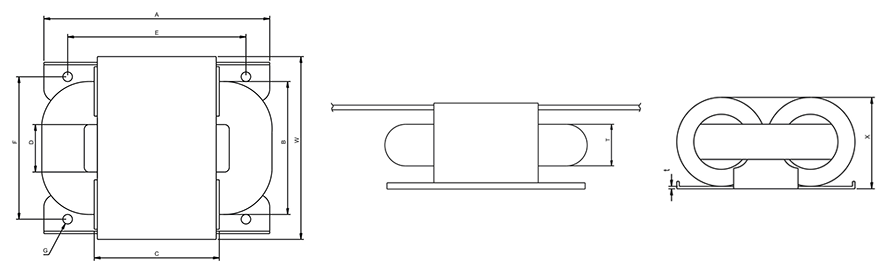

Outline Dimensions:


1659508277683

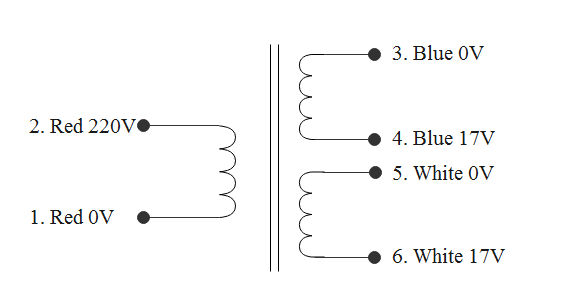

Electrical Schematic:
