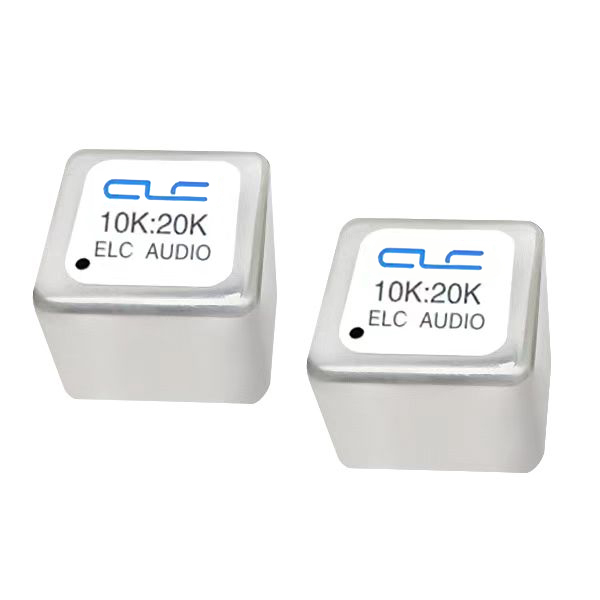

10K: 20K Permalloy Isolation transformer
Permalloy 10K : 20K Audio Isolation Transformer
Features:
Flexible, with many different connection alternatives possible.
Excellent magnetic and electrostatic shielding.

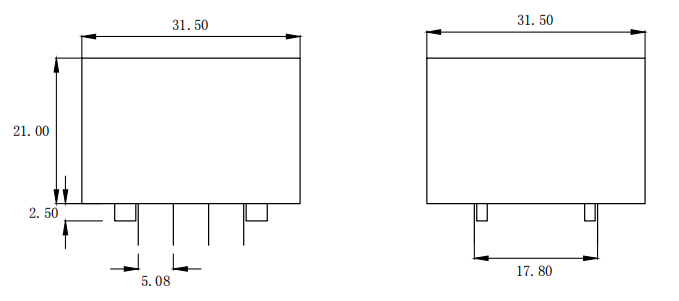

Dimension(mm):

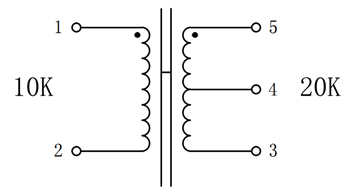

Electric Schematic:
Electrical Parameters:
| Static resistance of primary: | 4050 OHMS |
| Static resistance of secondary: | 5750 OHMS |
| Primary inductance: | 30H |
| Secondary inductance: | 60H |
| Primary overcurrent: | 10mA |
| Frequency response: | 20Hz-47kHz -1.6dB |
