Equivalent to Jensen JT-112P-2HPC

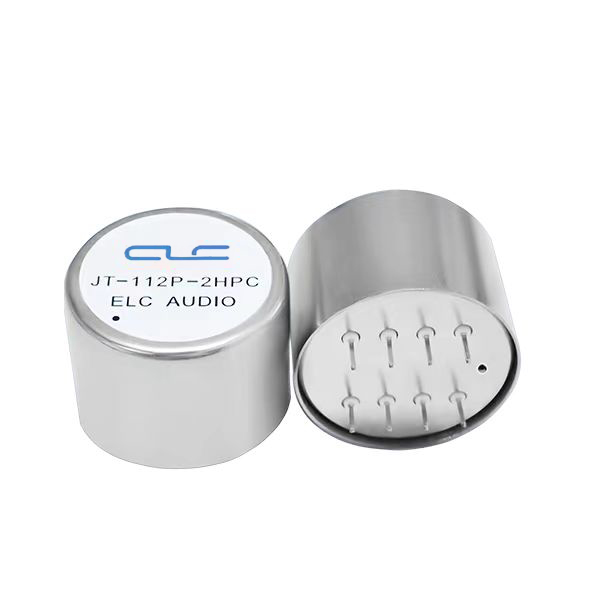

Ultra-low Frequency Line Input Transformer ELC JT-112P-2HPC
Features:
Ideal for audio amplifier input isolation.
Low frequency distortion has also been reduced to provide accurate reproduction.

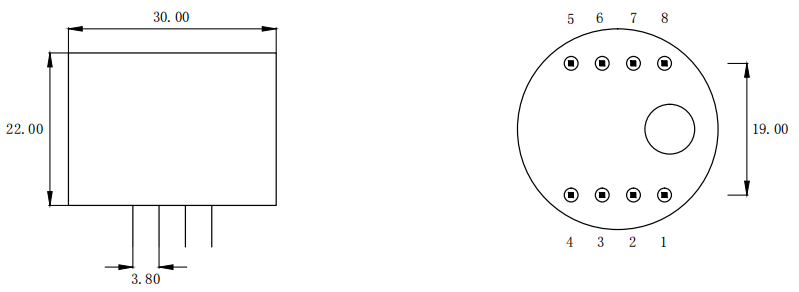

Dimension(mm):

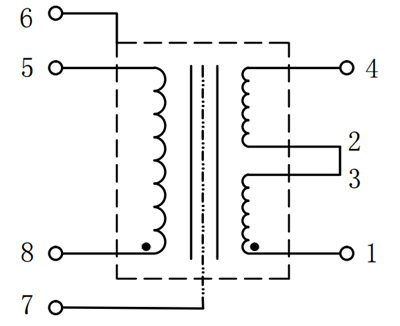

Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 1 : 1 |
| DCR (Pin1 to Pin3): | 45 OHMS |
| DCR (Pin2 to Pin4): | 45 OHMS |
| DCR (Pin5 to Pin8): | 45 OHMS |
| Inductance(Pin1 to Pin4): | 3H |
| Inductance(Pin5 to Pin8): | 3H |
| Frequency response: | 20Hz-20kHz -0.1dB |
| Hi-Pot: | 1250VAC 5mA 1Sec. |
