Equivalent to Jensen JT-10KB-DPC

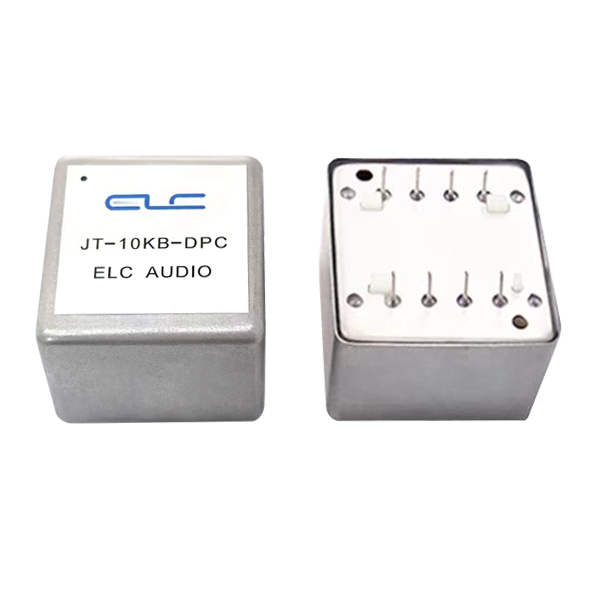

Line Input Transformer ELC JT-10KB-DPC
Features:
Ideal passive 'Pro to Consumer' level converter.
This transformer is designed for use in wideband line input stages.

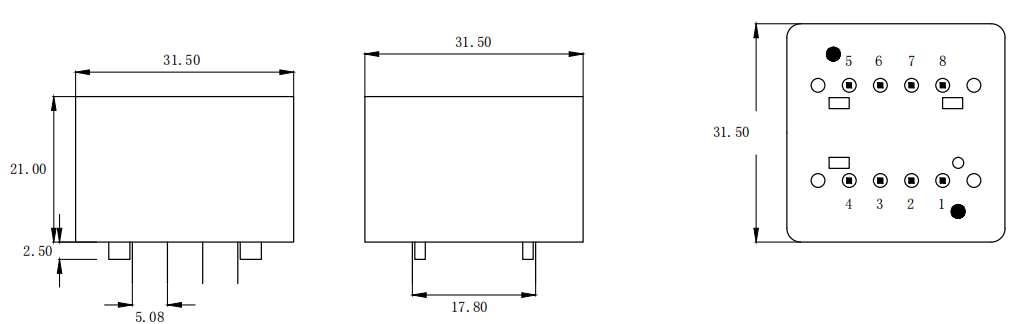

Dimension(mm):

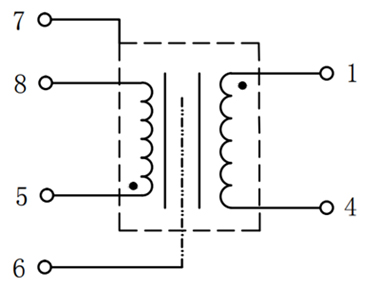

Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 4 : 1 |
| DCR (Pin1 to Pin4): | 2.4K OHMS |
| DCR (Pin5 to Pin8): | 97 OHMS |
| Inductance(Pin1 to Pin4): | 606H |
| Inductance(Pin5 to Pin8): | 39.2H |
| Frequency response: | 20Hz-20kHz -0.4dB |
| Hi-Pot: | 1250VAC 5mA 1Sec. |
