Equivalent to Jensen JT-11-YMPC

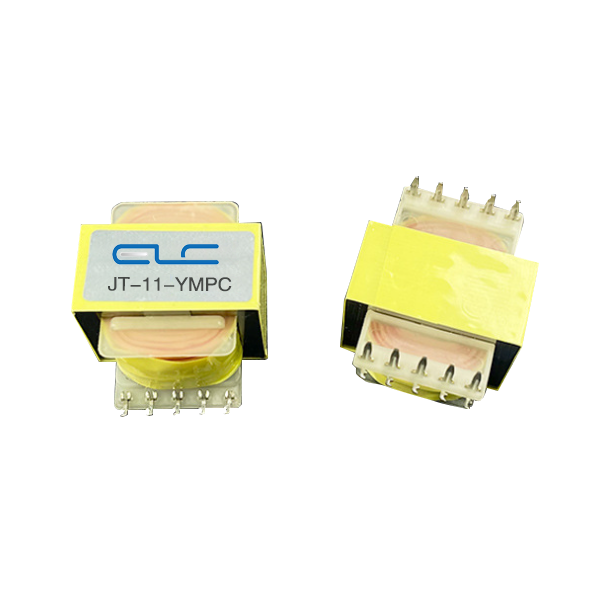

Line Output Transformer ELC JT-11-YMPC
Features:
Specially designed for high performance 'consumer' applications.
Excellent time domain performance.
This transformer can eliminate 'ground loop' problems when driving either balanced or unbalanced inputs.

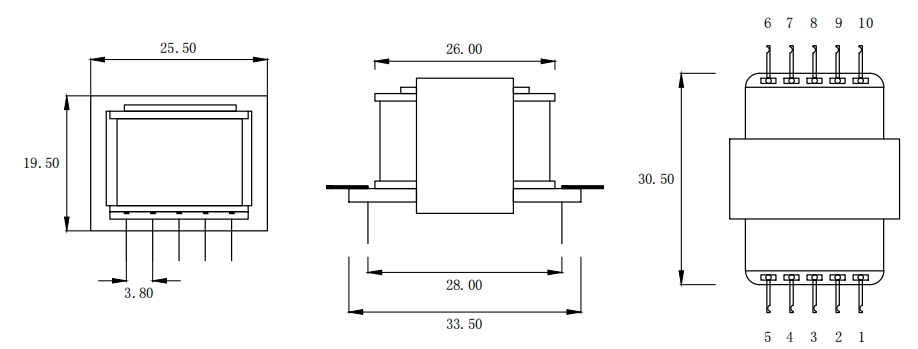

Dimension(mm):
Electric Schematic:
Electrical Parameters:
| Turns Ratio: | 1 : 1 |
| DCR (Pin1 to Pin3): | 42 OHMS |
| DCR (Pin2 to Pin4): | 138 OHMS |
| Inductance(Pin1 to Pin3): | 47H |
| Inductance(Pin2 to Pin4): | 47H |
| Frequency response: | 20Hz-20kHz -0.00dB |
| Hi-Pot: | 500VAC 5mA 1Sec. |
