Equivalent to Jensen JT-DB-EPC

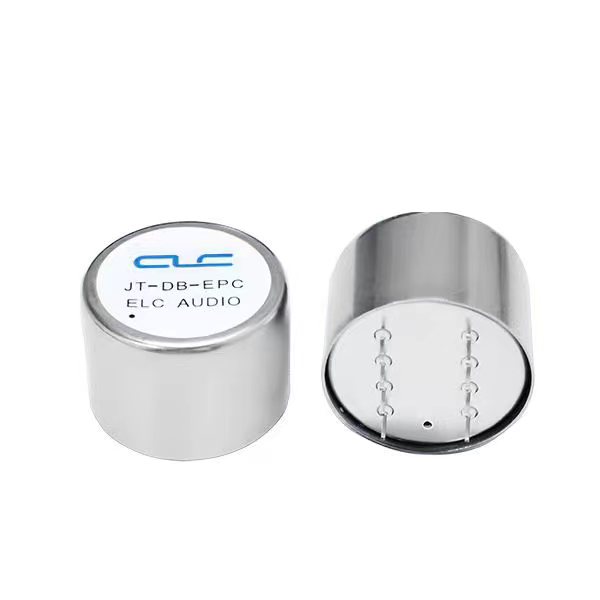

Direct Box Transformer ELC JT-DB-EPC


Converts unbalanced line levels to balanced mic level output.

Allows use of long cables without high frequency loss.

Excellent frequency response and time domain performance.

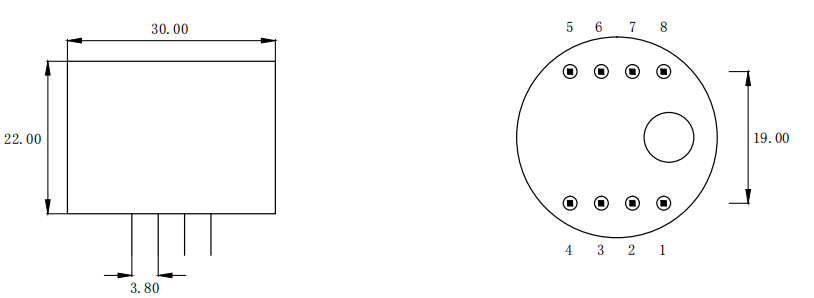

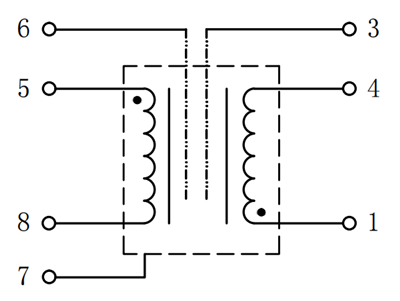

Electric Schematic:


Electrical Parameters:

Turns ratio:  11.52 : 1
DCR (Pin5 to Pin8):  3.9K OHM
DCR (Pin1 to Pin4):      63 OHM
Inductance(Pin5 to Pin8):   10.5 H
Inductance(Pin1 to Pin4):1.32K H
Frequency response: 20Hz-20kHz   -0.08dB
Hi-Pot: 500VAC  5mA  1Sec.
